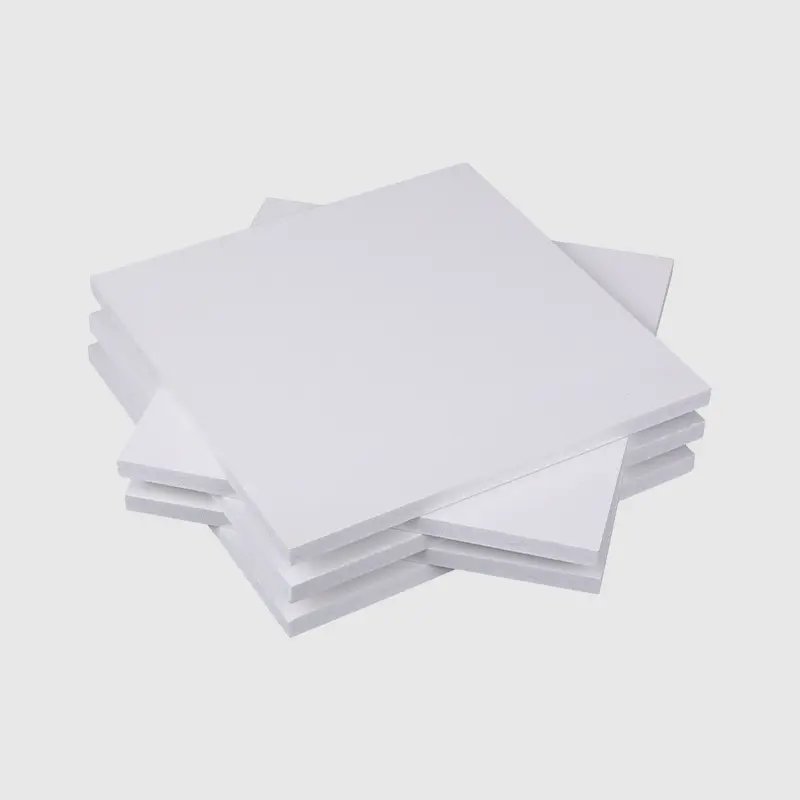

pvc foam board technical plastic sheets

Features: snowboard high-density material for architectural sand table model, making handmade DIY material. Support LOGO customisation, outer packaging customisation, pattern customisation. Made from high quality PVC foam, these sheets have a unique composition that combines lightweight flexibility with rugged durability, making them ideal for a wide range of applications. Whether you are creating signage, architectural models or complex prototypes, these technical plastic sheets provide the canvas for your imagination. With a thickness of 5mm, these sheets strike the balance between strength and manageability, ensuring easy handling without compromising on performance. Their closed-cell structure not only enhances durability, but also offers water, chemical and weather resistance, making them suitable for both indoor and outdoor use. In addition to their physical properties, these PVC foam boards are also environmentally friendly, with recyclable materials and low VOC emissions, meeting modern sustainability standards.

Send Inquiry

Description
Reviews (0)

Product colour: white

Size: 1220*2440

Thickness: 5mm

Density: 0.4-0.8g/cm³

High-tech Durable 5mm PVC Foam Board Technical Plastic Sheets – High Rigidity Lightweight Engineering Material Solution

Product Features

Exceptional Strength-to-Weight Ratio: Closed-cell foam structure provides high rigidity while maintaining extremely light weight, making it an ideal lightweight PVC sheet alternative to traditional wood and metal.
Excellent Weather and Chemical Resistance: Offers outstanding resistance to moisture, oils, acids, alkalis, and many solvents, ensuring long-term stability in harsh environments and reliable chemical-resistant PVC board performance.
Easy to Process and Customize: Can be cut, engraved, drilled, milled, and heat-bent using standard woodworking tools, significantly simplifying the PVC foam board processing workflow and improving production efficiency.

Product Description

This 5mm PVC foam board is a rigid, closed-cell foam core material based on Polyvinyl Chloride, designed for industrial and commercial applications requiring lightweight properties, structural stability, and environmental resistance. Its core technology lies in the uniform microcellular foaming process, which ensures isotropic physical properties of the board, preventing warping and deformation.

The product is manufactured using pure raw materials that comply with international standards and is free of harmful substances such as asbestos. Its homogeneous structure not only provides a smooth and flat surface, facilitating subsequent laminating or printing, but also ensures aesthetic and consistent edges after cutting, meeting the high standards of commercial display material procurement needs.

Technical Specifications

Parameter	Value	Test Standard
Thickness	5mm (±0.2mm)	–
Density	0.55 g/cm³	ISO 1183
Tensile Strength	≥ 18 MPa	ISO 527
Flexural Strength	≥ 30 MPa	ISO 178
Impact Strength (Charpy)	≥ 45 kJ/m²	ISO 179
Temperature Range	-20°C to +60°C	–
Flame Retardancy	B1 (according to DIN 4102)	DIN 4102

Application Fields

This product is suitable for the following industrial scenarios:

Construction & Decoration: Outdoor sign substrate, interior decorative panels, sanitary partitions.
Transportation: Marine interior panels, RV lining, truck body advertisement panels.
Commercial Display: Exhibition display stands (POP display), screen printing substrate, product display cases.
Industrial Manufacturing: Machine guards, jig pads, cleanroom panels.

Common Procurement Inquiries

1. How to choose between PVC foam board, acrylic board, or aluminum composite panel for outdoor signage applications?

The choice depends on budget, durability, and aesthetic requirements. PVC foam board is cost-effective, lightweight, and fully waterproof throughout its material, preventing core corrosion which can occur in aluminum composite panels. It is more flexible than acrylic and more impact-resistant, less prone to cracking. However, for applications requiring very high surface gloss and transparency, acrylic remains the preferred choice. If you need to select the most suitable material for your outdoor advertising signage project, our technical team can provide a comparative analysis based on your specific operating conditions.

2. After long-term outdoor use, will the surface easily yellow or will the strength decrease?

This product’s formulation includes UV stabilizers to effectively delay yellowing and aging caused by sunlight exposure. Its chemical structure is stable, and strength will not decrease due to moisture absorption, which is a core advantage over wooden materials. However, under extremely intense and continuous sunlight, any polymer material will undergo slow aging. If your project has extremely high requirements for long-term color stability, it is recommended to apply a UV-protective laminate or choose white or other light-colored boards. We can provide more detailed weathering test data for your reference.

3. When performing CNC milling, how to optimize parameters to prevent burrs or tearing at the board edges?

Burrs are often related to the processing tools and parameter settings. It is recommended to use sharp, carbide milling tools with three or more teeth specifically designed for plastic processing, employing a strategy of high rotational speed and slow feed rate. Air cooling is preferable to liquid cooling to prevent the board from absorbing moisture. The optimal spindle speed, feed rate, and cutting depth depend on the specific machine and tool size. We can provide customers with a basic CNC machining guide for PVC boards and recommend conducting a sample test before mass production to optimize parameters.
